AWS Deployment Diagram

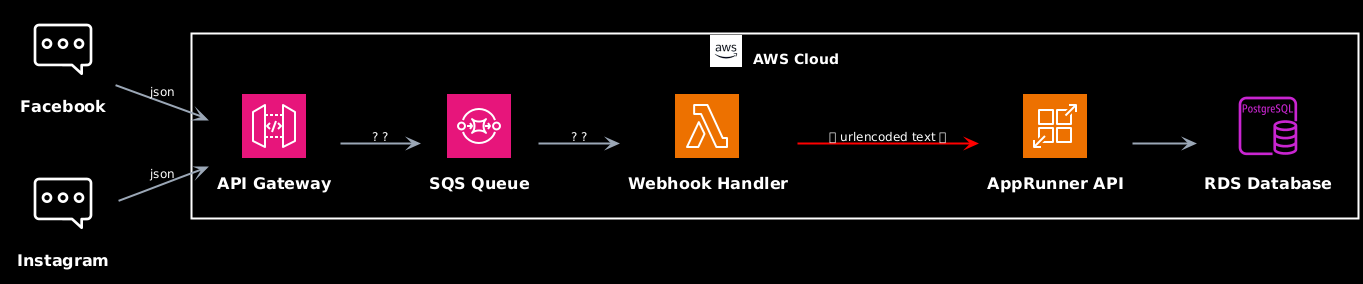

Rendered Output​

Source​

@startuml Deployment Diagram

!$AWS_DARK = true

!define AWSPuml https://raw.githubusercontent.com/awslabs/aws-icons-for-plantuml/v16.0/dist

!include AWSPuml/AWSCommon.puml
!include AWSPuml/AWSSimplified.puml

!include AWSPuml/General/AuthenticatedUser.puml
!include AWSPuml/General/Chat.puml
!include AWSPuml/ApplicationIntegration/APIGateway.puml
!include AWSPuml/ApplicationIntegration/SimpleQueueService.puml
!include AWSPuml/Storage/SimpleStorageService.puml
!include AWSPuml/Compute/Lambda.puml
!include AWSPuml/Compute/AppRunner.puml
!include AWSPuml/Database/AuroraPostgreSQLInstance.puml

!include AWSPuml/SecurityIdentityCompliance/Cognito.puml
!include AWSPuml/SecurityIdentityCompliance/SecretsManager.puml

!include AWSPuml/Containers/ElasticContainerRegistry.puml

!include AWSPuml/Groups/AWSCloud.puml
!include AWSPuml/Groups/VPC.puml

left to right direction

Chat(webhooks_fb, "Facebook", "comments webhook")
Chat(webhooks_ig, "Instagram", "comments webhook")

AWSCloudGroup(cloud) {
    APIGateway(webhookgw, "API Gateway", "webhooks")
    SimpleQueueService(sqs, "SQS Queue", "webhooks")
    Lambda(lambda, "Webhook Handler", "webhooks")
    AppRunner(api, "AppRunner API", "webhooks")
    AuroraPostgreSQLInstance(rds, "RDS Database", "postgres")
}

webhooks_fb --> webhookgw : json
webhooks_ig --> webhookgw : json

webhookgw --> sqs : ? ?
sqs --> lambda : ? ?
lambda --> api #ff0000: 💥 urlencoded text 💥

api --> rds

@enduml
